Speedhut Gauges - Sunbeam Tiger


Here are some pictures of the completed dash showing off the Speedhut gauges. The gauges that were used in the Tiger Dash project (For options and pricing check Speedhut.com) -


GR258-OIL-01 2-5/8" Oil Pressure Gauge 100 psi (w/ warning)

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome

GL-90-FUELLEV-01 2-1/16" Fuel Level Gauge (programmable) (90° Sweep)

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome

GL-90-VOLT-01 2-1/16" Volt Gauge 6-18V (90° Sweep)

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome

GL-WTR-01 2-1/16" Water Temp Gauge 120-260F

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome

GL-OILT-02 2-1/16" Oil Temp Gauge 140-300F

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome

GL4-TACH-02 4" Tachometer Gauge 8K RPM

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Logo: Orange Sunbeam-Tiger-Logo
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome

GR4-GPS-03 4" GPS Speedometer Gauge 160mph

    Colors: Day - Black dial // White font
    Night - Numbers White Glow
    Font Style: Muscle
    Tick Style: Standard
    Logo: Orange Sunbeam-Tiger-Logo
    Pointer: Standard Racer Red (Glows Red)
    Bezel: Legacy Chrome
Sunbeam Dash Before Fitment

Tiger Dash Prior to Gauge Install


Jst a sample of the dashboard prior to installing the Speedhut gauges. Nice looking wood!
Speedhut Legacy Speedo and Fuel Gauge

Night Time View of Speedhut Fuel gauge and Speedometer


Lights out! This is what the  gauges look like when it's dark and the panel lamps are on. Note that the speedo does not have the GPS antenna connected so it will display the 'acquiring' indicator. Also note I paid extra to remove the unnessary GPS printing that would be right next to the MPH printing on the speedo.
Speedhut Legacy Gauge Night

Speedo Closer View


Here is a bit closer view of the Speedometer. The Tiger logo was a $10 option (per gauge) and was also tranparent so it lights up orange! The gauge pointer is also lit up.
Ask Questions or Comment about this below!
Speedhut Legacy Water Temp Gauge

Water Temperature Gauge


This is a close view of the water temperature gauge. This is a full sweep smaller style gauge . Nice looking.


Conclusion


So that is how the Speedhut gauges look. They are a bit more pricy then the off the shelf models, but for the most part every bit of the style is adjustable by you. Some things are an up charge, for example, the Tiger logos I provided were 10 bucks per gauge. I didn't go crazy, so it was not that bad of an upcharge. So far I'm very happy with the look and quality of the products. Also check out the Sunbeam Tiger Dash Project, and the Videos below for more details.
Sunbeam Tiger Warning Lights

Oil Warning Lights


A quick look at the low pressure oil warning lights. These were LED side marker lamps that were very narrow and covers up the heater controls that are no longer used. These were wired into the Speedhut Oil gauges warning light output. Check here for Speedhut Warning Light Controller on how that all works. All you really need to know at this point is that the oil gauge has an output jack and I built a controller that will allow it to trigger a different light then the one that Speedhut sells.
Dashboard Low Oil Warning Lights

Oil Warning Lights - Painted and Fitted


After some self etching primer and the light texture paint it's seems to fit just fine. How does it look? Well hard to say until all the parts get reinstalled, but it won't be something that goes unnoticed when they light up.


Dashboard Wrap up


Ok that's enough dash work for a bit, final bit's of wiring can't be completed until the Speed Hut gauges show up, and a few bits of wiring parts I need as well. I'll get some pics of the Speed Hut custom gauges that I had made, hopefully it will counteract the look of the oil warning lights!
GTSparkplugs Header
Click for Contact Page Click for Contact Page

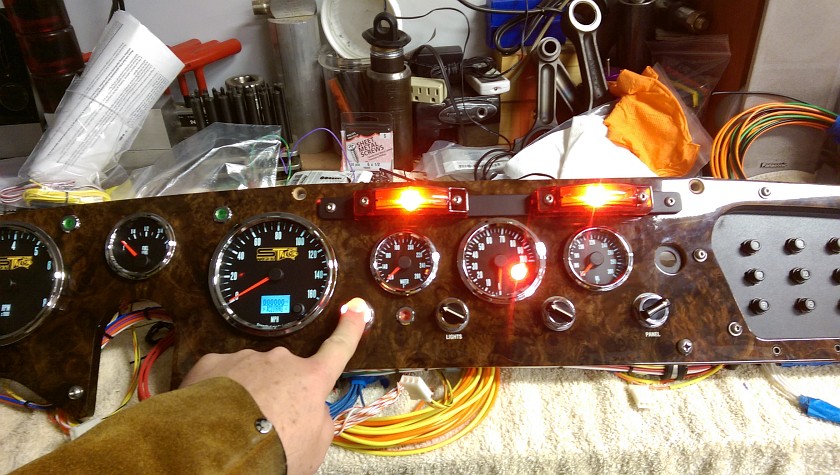

Gauges Powered Up!


This is a daytime view of the gauges powered up. Note the dash lamps are ON so you can see some slight backlight on the gauges. The lower left light is the starter button, the rest are keyed to the oil pressure (2 Larger, and gauge light).
Day View Speedhut Gauges
Another View Speedhut Dash

Another View of Tiger Dash with Gauges


Just anoter view of the above. Getting some glare by covering the lighted starter button.
