Air Filter Flow Bench



In all its glory a used Kodak Printer box was converted into an Air Filter Flow Bench, or poor man's filter tester since the number are really relative based on clean new filters.

Basically the box was used to test the rectangular flat air filters that are used on my Ford 2003 Power Stroke Excursion.

Below is a fun video I did for a place that I am no longer supporting but since I did the video I can feel good about re-sharing the fun as well as the informal testing that was done.

The overall idea of the video was to show you can make your own test equipment with some minimal investment, and then we show relative to each other how the filters flow. Three filters were used, a new stock Fram filter, the same Fram filter that the Filter Minder showed as very clogged and in need of replacement and a Spectre gauze filter.

Also the idea was shot out to see if we could clean the old clogged filter like the old days by blowing it out. See the results for yourself... And enjoy the wacky professor doing his thing.

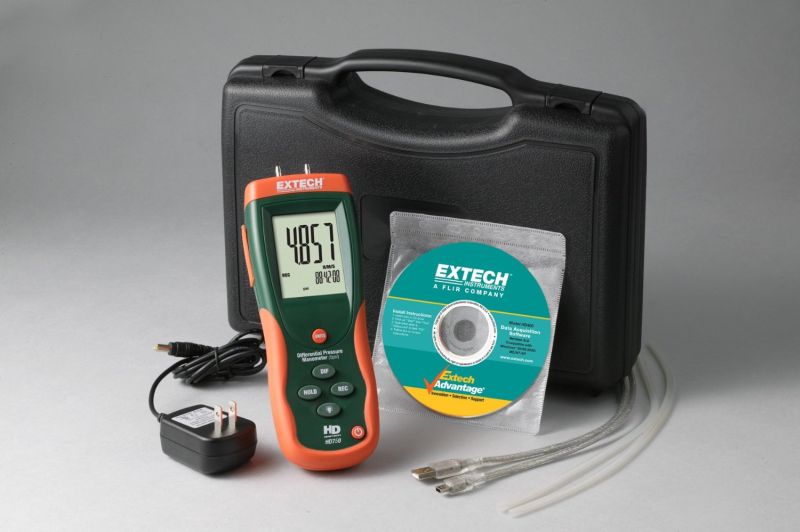

The 'Digital Vacuum' gauge is actually a Manometer but that seems way to scientific to say. Read all about it on Amazon as that's where I picked it up at - Extech HD750 Differential Pressure Manometer, You can find less expensive ones as well. They come in a couple of different measurment ranges. I chose the 5psi one, they have one that is more sensitive at full scale 2psi. It must be HEAVY DUTY as it has HD in the part number (note sarcasm), but it's actually a well built tool with some really nice features if you have a use for one this is a good product.

Remember the idea here is to make and test things with mostly stuff you can make yourself, if you didn't have a high tech digital manometer you could have made one with a clear piece of tubing and some water. If you look around on the web you can find many ingenious and simple tools that you can make for next to nothing so have at it and start 'Garage Professoring'!
Extech HD750
If the video doesn't play in above player use the link HERE
