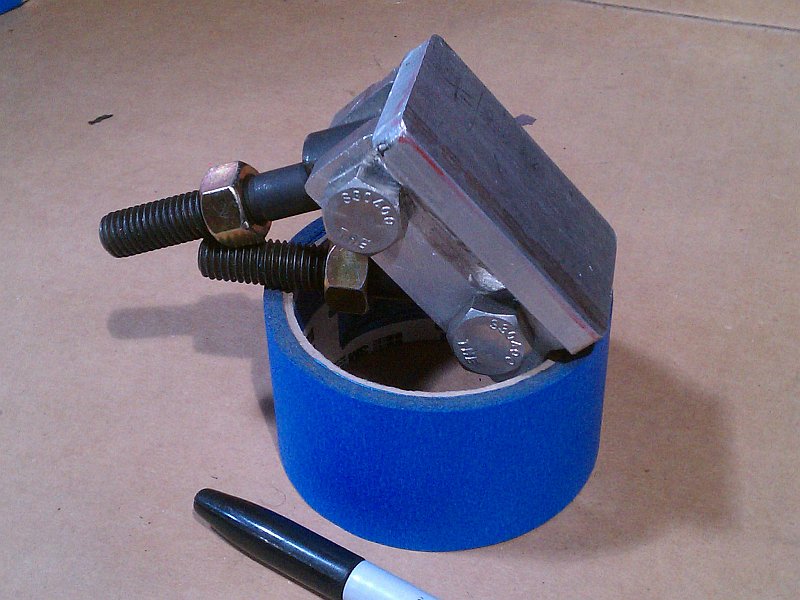

Assembled Clutch Stop - Closer View
I used 3/8" Aluminum bar stock that was in the scrap pile. You will have to come up with the dimensions for your pedal, but doesn't need to be huge. The sides (about 1" in width) that hold the swing bolts on were welded with some old bolts to keep the assembly together. I also put some BLUE tape on one side of the swing bolts to help keep a bit of space so they could swing and still be tighten by the cross bolts. Tape was removed after welding (yes it was burnt, but did it trick). Welding was done with the Millermatic Pulser and the Aluminum feeding Spool Gun. Welding was only on the outside of the side plates.
